High-Precision Ball Screw Lifter
on：From：YEXIN Machinery
M series High-precision ball screw lifting system
The Transmission equipment is our new products, such as the M series high-precision ball screw elevators, screw listers, the BLCD series electric drums, the KK linear modules, the T/HD/ARA series steering boxes, and the MB series continuously variable transmissions. The company is committed to providing personalized non-standard customization services for its customers. Its design concept follows the principles of series and modularization, enabling the products to have wide applicability and fully meeting the needs of different customers.
Product specification
| Model | M1605 | M2510 | M3210 | M4010 | M5010 |
| Static load (KGF) | 3662 | 8754 | 14649 | 18600 | 23536 |
| Dynamic load (KGF) | 1656 | 3544 | 5766 | 6478 | 7204 |
| Screw | 1605 | 2510 | 3210 | 4010 | 5010 |
| Speed ratio | 2 | 2 | 2 | 2 | 2 |
| Lifting efficiency % | 90 | 90 | 90 | 90 | 90 |
| Shell material | nodular cast iron | ||||

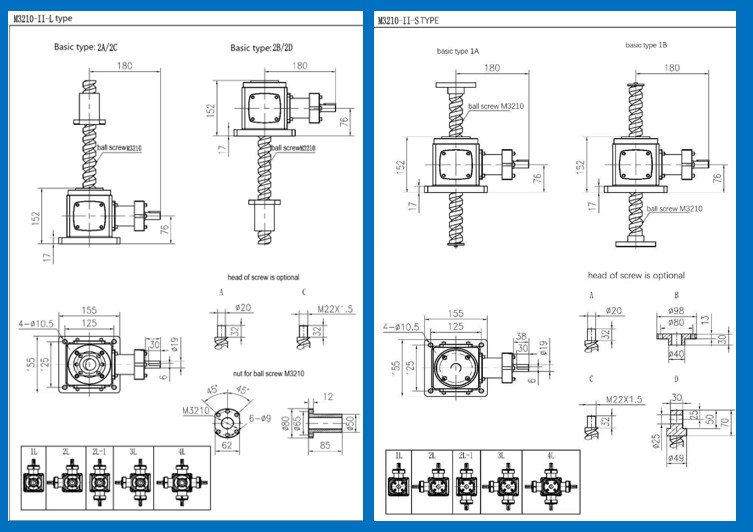

M3210-series ball screw lifter drawing

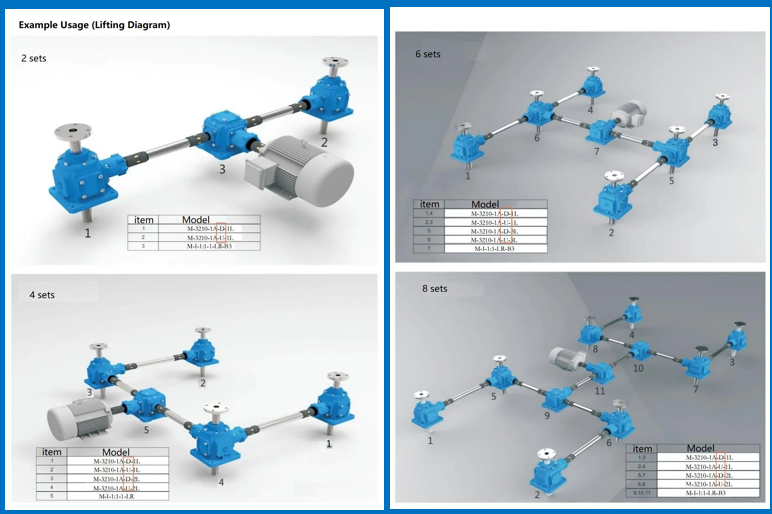

Multi-unit synchronized lifting system
