Belt Splicing Press DRJL-1800 has evolved from its original design into the most advanced, reliable and easy to use press on the market. Constructed from light weight high tensile strength aluminium.
Utilizing a single air-bag or water-bag it gives the most even pressure distribution across the entire platen surface. Its thin platen construction allows for maximum flexibility to contour to the shape of the conveyor belt and provide accurate vulcanisation
CONTROL: The control box incorporates circuit breakers and digital temperature controllers.

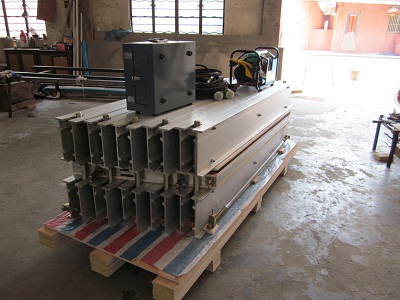

Belt Splicing Press DRJL-1800
Size of heating plate LxW(mm): 8302078 Width of rubber belt to be joined-up(mm): 1800 Total Power(KW): 15 Overall dimensions LxWxH(mm): 2320830*980
Total weight(kg): 1198
| Model | Heating plate LxW(mm) | Splicing Width | power(kg) | Heaviest part(Kg) | Overall dimensions LxWxH(mm) | Weight(kg) | Hand pump | Control box |
| DRJL-650 | 830x838 | 650 | 4 | 45.5 | 1142x830x750 | 445 | 1 | 1 |
| DRJL-800 | 830x1028 | 800 | 7.2 | 53.8 | 1320x830x750 | 550 | 1 | 1 |
| DRJL-1000 | 830x1188 | 1000 | 8.4 | 60.5 | 1440x830x750 | 625 | 1 | 1 |
| DRJL-1200 | 830x1458 | 1200 | 10.8 | 69.3 | 1680x830x750 | 795 | 1 | 1 |
| DRJL-1400 | 830x1638 | 1400 | 11.4 | 78.8 | 1950x830x750 | 911 | 1 | 1 |
| DRJL-1600 | 830x1808 | 1600 | 13.2 | 89.7 | 2060x830x980 | 1056 | 1 | 1 |
| DRJL-1800 | 830x2078 | 1800 | 15 | 98.3 | 2320x830x980 | 1198 | 1 | 1 |
| DRJL-2200 | 830x2508 | 2200 | 18 | 130.5 | 2842x830x980 | 1422 | 1 | 1 |
